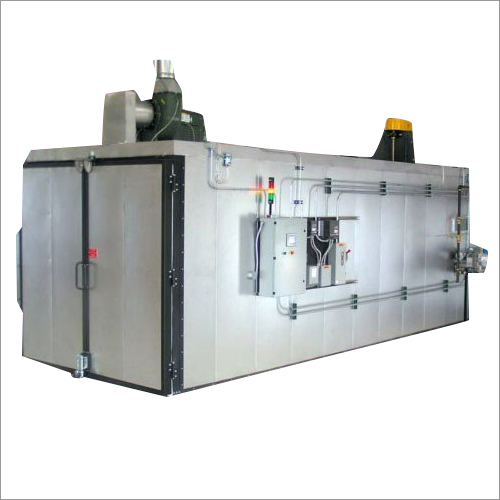

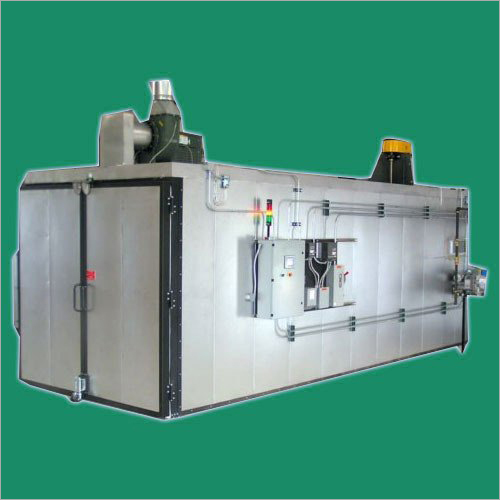

Electric Powder Curing Oven

Get a Price/Quote

Electric Powder Curing Oven Specification

Condition
New

Control Mode
Digital PID Controller

Power Source
Electric

Heating Method
Electric Heating Element

Accuracy
2C

Heating Capacity
12 KW

Type
Powder Curing Oven

Model
EPCO-20

Internal Size
1500 x 1500 x 1500 mm

External Size
2000 x 1700 x 1700 mm

Volume
3.4 m

Air Flow
Forced Air Circulation

Temperature Range
50C to 250C

Material
Mild Steel with Powder Coating

Dimension (L*W*H)
2000 x 1700 x 1700 mm

Power
12 KW

Voltage
415 V AC, 3 Phase

Surface Finish
Powder Coated

Control Panel
Integrated/Separate with Indicator Lamps

Door Type
Single/Double Door (Customizable)

Application
Powder Coating, Paint Curing, Industrial Uses

Insulation Thickness
100 mm Glass Wool

Mobility
Optional Trolley/Fixed Installation

Safety Features
Over-Temperature Protection, Emergency Stop

Heating Element Material
High Quality Nichrome

Maximum Load Capacity
500 kg (approx.)

Ambient Operating Temperature
5°C - 45°C

Exhaust System
Adjustable Exhaust Damper

Interior Finish
High Temperature Resistant Paint

Shelf Type
Removable/Adjustable Shelves (Optional)

Heating Time (to 200°C)
Approx. 25-30 minutes

About Electric Powder Curing Oven

Specification

Capacity	2000 Kg
Coating	Powder Coating
Air-Flow Direction	Horizontal Air Flow
Temperature	500 DegreeC
Brand	Micro Engitech
Material	MS
Voltage	240 V
Motor Power	10 HP
Frequency	50 Hz
Country of Origin	Made in India
Phase Type	Three

Engineered for Performance and Efficiency

EPCO-20 Electric Powder Curing Oven delivers swift heat-up times, reaching 200C in approximately 25-30 minutes. The 12 KW electric heating system is paired with advanced insulation, maximizing energy efficiency and consistent temperature distribution. This oven is ideal for powder coating, paint curing, and a range of industrial processes requiring high accuracy.

Customizable and User Friendly

Choose from single or double insulated doors and opt for removable or adjustable shelves to suit your specific workflow. Integrated or separate digital control panels, complete with indicator lamps, make operation intuitive, while a high temperature resistant painted interior ensures easy maintenance. The optional trolley enables mobility for flexible factory layouts.

Reliability and Safety First

Built with high-grade materials and essential safety features such as over-temperature protection and emergency stop, the EPCO-20 prioritizes operator safety. The adjustable exhaust damper provides optimal ventilation, ensuring process safety and long-term oven durability during heavy-duty industrial use.

FAQ's of Electric Powder Curing Oven:

Q: How does the EPCO-20 oven maintain consistent curing temperatures?

A: The EPCO-20 employs a digital PID controller that ensures temperature accuracy within 2C. Its 100 mm glass wool insulation minimizes heat loss, while forced air circulation guarantees even heat distribution throughout the 3.4 m3 chamber, resulting in uniform curing of powder-coated or painted parts.

Q: What safety features are included with this powder curing oven?

A: For operator protection, the oven is equipped with over-temperature protection to prevent overheating and an emergency stop button for immediate shutoff in case of emergencies. Indicator lamps on the control panel offer clear operational status at a glance.

Q: When should the adjustable exhaust damper be used?

A: The adjustable exhaust damper is ideal for controlling internal humidity and expelling fumes during the curing process. It is especially useful when working with large loads or materials prone to off-gassing, enhancing air quality and curing results.

Q: Where can this oven be installed?

A: This oven can be installed in factories, workshops, or industrial production lines where powder coating or paint curing is required. It offers both fixed and mobile (trolley-mounted) installation options to suit diverse workspace layouts.

Q: What is the process for loading and unloading items into the oven?

A: Operators can easily load and unload parts using the single or double doors, with optional removable or adjustable shelves to accommodate items of various sizes. The optional trolley further simplifies material handling for heavier or bulkier loads.

Q: How can the oven benefit my industrial operation?

A: By offering fast heat-up times, high load capacity, and accurate temperature control, the EPCO-20 optimizes throughput and ensures reliable, high-quality finishes for powder-coated or painted products. Its energy-efficient design and robust safety measures contribute to lower operating costs and improved safety.
