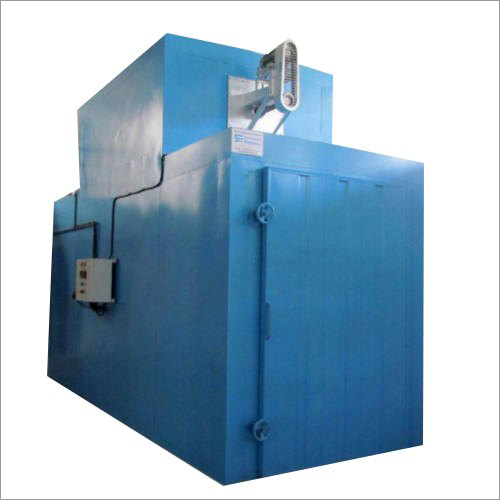

Commercial Gas Fired Oven

Get a Price/Quote

Commercial Gas Fired Oven Specification

Control Mode
Digital PID Temperature Controller

Power Source
Natural Gas / LPG

Accuracy
1C

Condition
New

Heating Method
Direct Gas Fired

Heating Capacity
60,000 Kcal/hr

Type
Batch Type Oven

Model
GFO-1200

Internal Size
1200 mm x 1000 mm x 1000 mm

External Size
2050 mm x 1400 mm x 1800 mm

Volume
1200 Liters

Air Flow
Horizontal Forced Air Circulation

Temperature Range
Ambient to 300C

Material
Mild Steel with High Temperature Paint

Dimension (L*W*H)
2050 mm x 1400 mm x 1800 mm

Power
2.2 kW

Voltage
220V/ 380V, 50/60Hz

Surface Finish
Powder Coated

Observation Window
Tempered Glass

Door Type
Double Wall Insulated Hinged Door

Operating Environment
Industrial Workshop

Burner Type
High Efficiency Gas Burner

Safety Feature
Over-Temperature Cutoff, Flame Failure Device

No. of Racks
2 Adjustable Racks

Insulation Thickness
100 mm Mineral Wool

Exhaust System
Adjustable Exhaust Damper

Ignition System
Automatic Electric Ignition

Application
Suitable for Heat Treatment, Drying, Curing, Baking of Metals, Ceramics, and Components

About Commercial Gas Fired Oven

Gas Fired Oven is properly designed and are necessary for a quality finished products. The heat is transformed from burning the gas in a controlled manner. In addition to that, there are various ovens but we provide the most popular one. They give excellent performance, and made using high grade quality raw material. The Gas Fired Oven can be availed from us at reasonable prices.

Specification

Frequency	50 Hz
Capacity	1000 Kg
Air-Flow Direction	Vertical Down Airflow
Voltage	240 V
Temperature	400 DegreeC
Heating Mode	Gas
Brand	Micro Engitech
Country of Origin	Made in India
Motor Power	5 HP

Precision and Safety for Industrial Applications

Equipped with cutting-edge safety mechanisms such as over-temperature cutoff, a flame failure device, and automatic electric ignition, the GFO-1200 ensures both operator and product protection. The digital PID temperature controller delivers accuracy up to 1C, essential for consistent results in demanding heat treatment, drying, and curing processes. Designed for batch operation in industrial environments, its robust build and insulation improve efficiency and reduce heat loss.

Versatile and User-Friendly Design

With two adjustable racks, an easy-to-use control system, and observation windows made from tempered glass, the GFO-1200 is tailored for practicality and adaptability. The adjustable exhaust damper and horizontal forced air circulation further provide uniform heat distribution and precise process control, suitable for a broad range of materials and component sizes within the spacious 1200-liter chamber.

FAQ's of Gas Fired Oven:

Q: How does the GFO-1200 Gas Fired Oven ensure safety during operation?

A: Safety in the GFO-1200 is maintained by features such as an over-temperature cutoff that prevents overheating, a flame failure device that shuts off gas supply if the flame is interrupted, and a double-wall insulated door. Additionally, the observation window uses tempered glass for safe monitoring.

Q: What types of processes can be performed using this oven, and what materials is it suitable for?

A: This oven is suitable for heat treatment, drying, curing, and baking processes, and is ideal for materials such as metals, ceramics, and various industrial components. Its versatile design supports a range of industrial applications.

Q: When should I use the adjustable exhaust damper and what is its benefit?

A: The adjustable exhaust damper should be used to regulate air exchange and humidity within the oven during different process stages. This helps maintain optimal atmosphere and ensures uniform results, especially for applications sensitive to moisture and gas concentrations.

Q: Where is the GFO-1200 typically installed and what is its ideal operating environment?

A: The GFO-1200 is designed for installation in industrial workshops, where its robust construction and forced air circulation system accommodate rigorous, continuous use in demanding environments.

Q: How does the automatic electric ignition system improve the usage process?

A: The automatic electric ignition provides fast, safe, and reliable burner start-up, minimizing manual intervention, reducing downtime, and enhancing operational convenience.

Q: What benefits does the 100 mm mineral wool insulation provide?

A: The thick mineral wool insulation ensures excellent thermal retention, reducing heat loss, promoting energy efficiency, and maintaining a stable internal temperature during extended operation.

Q: How is the temperature controlled and what level of accuracy can I expect?

A: Temperature is managed by a digital PID controller, offering precise settings with an accuracy of 1C. This guarantees consistent processing conditions for high-quality results.
