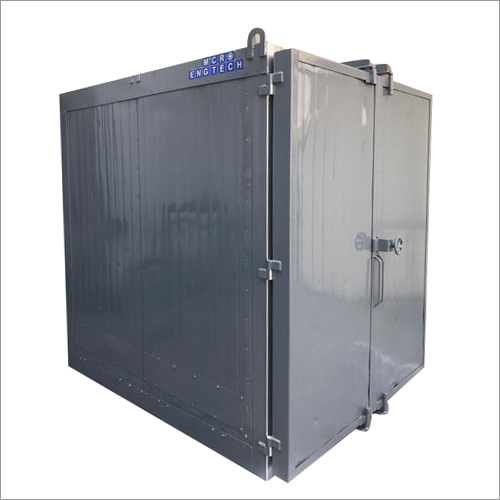

Diesel Fired Powder Coating Oven

Get a Price/Quote

Diesel Fired Powder Coating Oven Specification

Accuracy
2C

Condition
New

Power Source
Diesel

Heating Method
Diesel-fired burner with indirect heating

Control Mode
Digital temperature controller with timer

Heating Capacity
High, suitable for industrial batch curing

Type
Batch Type Oven

Usage
Industrial

Model
Diesel Fired Powder Coating Oven

Internal Size
As per customer requirement

External Size
As per customer requirement

Volume
1000 5000 liters (as per model)

Product Type
Diesel Fired Powder Coating Oven

Air Flow
Forced air circulation with heavy duty blower

Temperature Range
250 Celsius (oC)

Color
Any

Material
Mild steel with high temperature powder coated finish

Dimension (L*W*H)
Customizable

Power
2-5 kW (for control and fans)

Voltage
415V, 3 Phase, 50 Hz

Surface Finish
Powder Coated

Chamber Insulation
Mineral/rock wool, 100 mm thick

Exhaust System
Motorized exhaust with adjustable dampers

Burner Type
High-efficiency automatic diesel burner

Application
Suitable for metal parts, automotive components, and general industrial powder coating

Heat-up Time
20-30 minutes to max temperature

Safety Features
Over-temperature protection, emergency shutoff

Curing Time
15-30 minutes (depending on load)

Noise Level
Below 70 dB

Blower Motor Power
1-3 HP

Door Type
Double leaf/trolley type

About Diesel Fired Powder Coating Oven

Jump on the latest innovation in industrial finishing with our Diesel Fired Powder Coating Oven. This classic, polished oven features a high-efficiency automatic diesel burner, ensuring a gorgeous curing process for metal parts and automotive components. With an ephemeral heat-up time (2030 minutes), over-temperature protection, and emergency shutoff, reliability is guaranteed. The chamber boasts robust mineral wool insulation, forced air circulation, and a noise level below 70 dB for a professional environment. Flexibly designed to customer specifications, the oven offers advanced control with 2C accuracy, making it a valued solution for batch curing demands.

Commercial Applications and Usage

The Diesel Fired Powder Coating Oven is an ideal choice for manufacturers and exporters needing high-capacity curing of metal parts, automotive components, and industrial assemblies. Used as a batch type oven, it is suitable for both medium- and large-scale operations. Reliable for consistent, polished results, the oven accommodates custom chamber sizes, supporting a wide range of commercial powder coating requirements and industrial finishing processes across various sectors.

Certifications, Markets & Packaging Details

With robust valuation backed by national and international certifications, the Diesel Fired Powder Coating Oven is trusted in major export markets, including Europe, Asia, and the Americas. Express shipping and convenient drop-off options ensure swift deliverybeneficial for urgent production needs. Each unit is packaged with protected, industry-standard materials, maintaining surface finish integrity while preventing damage during transit from Indias leading exporter, manufacturer, and supplier.

FAQs of Diesel Fired Powder Coating Oven:

Q: How does the diesel burner improve the powder coating process in this oven?

A: The high-efficiency automatic diesel burner offers rapid, even heat distribution with indirect heating, resulting in consistent, polished finishes and reducing curing time for industrial batches.

Q: What safety features are integrated into the oven for reliable operation?

A: The oven includes over-temperature protection and emergency shutoff systems, ensuring safe operation during commercial use and maintaining optimal curing conditions.

Q: When is the oven suitable for use, and what applications does it serve?

A: This oven is used for batch curing in industrial powder coating processes, making it suitable for metal parts, automotive components, and general manufacturing around the clock.

Q: Where can the oven be customized for specific requirements?

A: Dimensions including length, width, and height, as well as chamber volume, are fully customizable at order to meet customer-specific application and facility needs.

Q: What certifications and delivery options are available for export orders?

A: The ovens are certified for international markets and delivered via express shipping or drop-off, ensuring fast and secure transportation with protective packaging.

Q: How does the ovens mineral wool insulation benefit the user?

A: The 100 mm thick mineral wool insulation minimizes heat loss and energy consumption, contributing to efficiency and maintaining safe exterior temperatures during operation.
